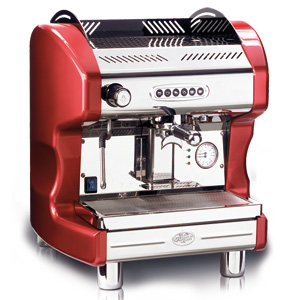

1 Groeps:

- Boiler with transversal exchanger Dia.50 mm 5.5 L
- Water mains connection with 3/8 G connection nipple
- 6 key push-button panel (1 espresso, 2 espresso, 1 long espresso, 2 long espresso, programming, tea)
- Luminous indicators that indicate: Machine ON – minimum boiler level – heating element working )
- Unit E61 with 4 unit temperature adjustments (aluminium knob) and 3-way solenoid valves with ruby seal
- Positive-displacement pump with externally adjustable by-pass
- Dual scale pressure gauge (pump and boiler pressure)
- Stainless steel steam nozzle
- Hot water nozzle with programmable timed dosing and external mixer with temperature adjustment)
- Electronic management of: Coffee doses (volumetric), tea dose (timed), minimum and maximum hot water level
- Valve for emptying boiler
- Automatic refilling
- Sirai pressure switch
- AISI 430 load-bearing frame
- AISI 304 BA body
- Safety thermostat with external reset
- Stainless steel tilt grille for espresso coffee

Link naar uitvergorting: http://www.quickmill.it/images/HQ/QM-64S.jpg

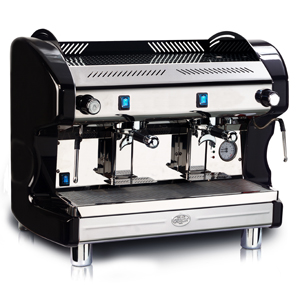

2 Groeps:

Semiautomatic 2GR. - MOD.QM QUARANTACINQUE

TECHNICAL FEATURES:

- Boiler with transversal exchanger Dia.50 mm 12 L
- Water mains connection with 3/8 G connection nipple
- Coffee dispensing with ON/OFF switch (manual)
- Luminous indicators that indicate: Machine ON – minimum boiler level – heating element working )
- Unit E61 with 4 unit temperature adjustments (aluminium knob) and 3-way solenoid valves with ruby seal
- Positive-displacement pump with externally adjustable by-pass
- Dual scale pressure gauge (pump and boiler pressure)
- Stainless steel steam nozzle
- Stainless steel hot water nozzle
- Valve for emptying boiler
- Automatic refilling
- Sirai pressure switch
- AISI 430 load-bearing frame
- AISI 304 BA body
- Safety thermostat with external reset
- Stainless steel tilt grille for espresso coffee

Link naar uitvergroting: http://www.quickmill.it/images/HQ/QM-65.jpg
